Hot Isostatic Pressing sintering furnace with high temperature/high pressure/Inert gas protection
Zhuzhou Ruideer Intelligent Thermal Equipment Co.,Ltd located in Ruideer Technology Park,Tianyuan District,Zhuzhou Hunan Province,founded in 2011,covering an area of more than 19,000 square meters.
At present,Ruideer has developed two core technologies of “high temperature &high pressure”and “chemical vapor deposition” with supplying vacuum sintering furnace and CVD coating furnace.
Our main products including:GPS furnace,MIM vacuum sintering furnace,ceramic silicon carbide/nitride sintering furnace,silicon carbide coating furnace,cemented carbide cutting tool CVD coating furnace and the turnkey solution for the cemented carbide cutting tool(From RDP powder,press machine,sinter furnace,cuuting machine,laser machine,metalgraphic testing instruments,sandblasting matchine,ultrosonic cleaning machine to CVD coating furnace).
The Gas Pressure Sintering Furnace(GPS furnace) has been awarded National Manufacturing Champion Product,widily used in cemented carbide,non-cermets,semiconductor,aerospace,automobile manufacturing,weapons and other fields,exported to the US,Russia,Japan,EU,Ukraine,South Korea,Vietnam and other countries,which making Ruideer a well-known brand in the industry.
|
Production Process
|
Core Equipment
|
Equipment Purpose
|
|
Powder Pretreatment
|
Ball Mill
|
Used for grinding and mixing cemented carbide raw material powders such as tungsten carbide. It refines bulk or coarse-grained raw materials into micron-sized powders and homogenizes multi-component powders, ensuring the consistency of the subsequent green compact composition and sintering performance.
|
|
|
Spray Drying Tower
|
Performs rapid drying and granulation of mixed powders to remove moisture and excess solvents, forming granular powders with good fluidity and uniform particle size. This lays the foundation for accurate mold filling and uniform density of pressed green compacts.
|
|
Compaction Molding
|
Electric Direct-Drive CNC Press
|
Adapted for precision forming of cemented carbide inserts. It uses CNC full-closed-loop control technology and provides instantaneous large thrust through synchronous direct-drive motors to precisely control compaction pressure and displacement. It can realize near-net-shape forming of inserts with complex shapes such as chip breakers, ensuring the dimensional consistency of batch products.
|
|
|
Servo Molding Machine for Cemented Carbide Powders
|
Precisely regulates the movement of upper punches, master molds and other components through a servo system to achieve high-precision forming of fine powders. It supports the compaction of complex structures such as multi-step and special-shaped cutting edges, reducing subsequent processing after sintering. Meanwhile, it optimizes the density of different areas of the insert body through gradient compaction to improve mechanical properties.
|
|
Sintering Treatment
|

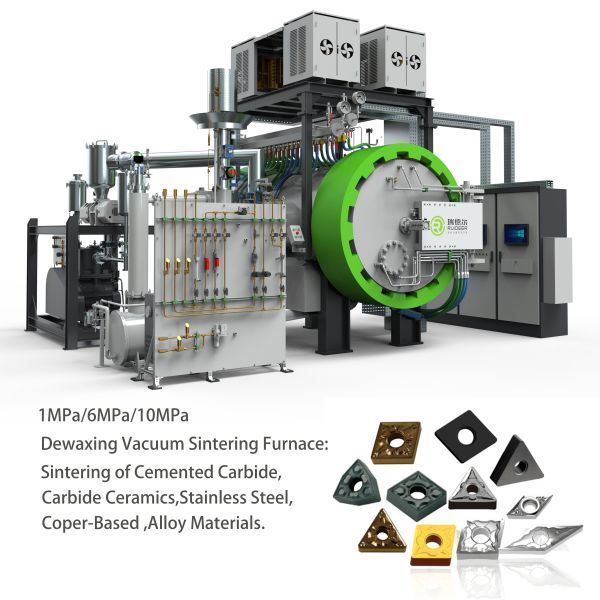

Ridder Gas Pressure Sintering (GPS) Furnace
|
Integrates multiple functions including vacuum dewaxing, vacuum sintering and pressure sintering. It can introduce gases such as argon to adjust the atmosphere, with a maximum temperature of 2200℃. It enables densification of cemented carbide inserts, reducing internal pores and improving hardness and wear resistance. Its rapid cooling technology can significantly shorten the cooling time of the high-temperature furnace body, reducing energy consumption during non-sintering stages.
|
|
|
Degreasing Furnace
|
Serves as an auxiliary equipment before sintering. It specifically removes forming agents such as PEG and paraffin contained in pressed green compacts, avoiding gas generation from the high-temperature decomposition of forming agents during sintering which may cause defects such as pores and cracks in inserts, thus ensuring the structural integrity of sintered inserts.
|
|
Pre-Coating Pretreatment
|
Automatic Sandblasting Equipment
|
Performs sandblasting on the surface of sintered inserts before coating to remove oxide layers, residual impurities and burrs. It also increases the surface roughness of inserts, greatly improving the bonding strength between the subsequent coating and the substrate and preventing coating peeling.
|
|
|
Automatic Cleaning Equipment
|
Adopts a combined water and solvent cleaning process to thoroughly remove dust and oil attached to the surface of inserts after sandblasting. It ensures the surface cleanliness of inserts, prevents impurities from affecting coating uniformity and adhesion, and provides qualified substrates for the coating process.
|
|
Coating Processing
|
Ridder Chemical Vapor Deposition (CVD) Coating Furnace
|
Relying on Ridder's core chemical vapor deposition technology, it causes chemical reactions of coating gases under high-temperature and high-pressure environments to deposit wear-resistant and high-temperature-resistant coatings (such as TiN, TiCN) on the surface of inserts. This significantly improves the wear resistance and high-temperature oxidation resistance of inserts during cutting.
|
|
|
Physical Vapor Deposition (PVD) Coating System (e.g., German Metaplas Automatic Coating System)
|
Deposits coating materials onto the surface of inserts through technologies such as arc and magnetron sputtering, forming a smooth coating with strong bonding force. It is suitable for precision cutting inserts requiring high coating surface finish, which can improve chip removal performance during cutting and extend the service life of inserts.
|
|
Processing & Inspection
|
Cutting Edge Grinding Machine
|
Uses 4-axis or 5-axis grinding equipment to precision grind the cutting edge of coated inserts. It ensures the dimensional accuracy of the cutting edge reaches the micron level, guaranteeing the machining precision and surface finish of inserts during cutting.
|
|
|
Cutting Test Equipment (e.g., German DMG CNC Lathe)
|
Conducts cutting performance verification of finished inserts. Through the supporting measurement and analysis system, it detects key indicators such as the cutting life and wear resistance of inserts, providing data support for the optimization of insert process parameters and quality control.
|
Equipment strengths:
- The equipment has the function of continuous heating at break point, automatic dewaxing function, wireless remote diagnosis function, and low temperature test function;
- The equipment vacuum main pipeline and dewaxing system are equipped with filters (patented products) to prevent dust and impurities from polluting the pump oil, and extend the oil change time and the service life of the pump unit.
- Convenient and intelligent: The control interface of the sintering furnace can be monitored through the mobile phone, and the operation status of the equipment can be controlled and understood anytime and anywhere. Fully automatic one-key operation function, one person can supervise multiple devices, intelligent production, and can be connected to ERP management system.
- Complete after-sales service system: provide 7×24 hours telephone hotline. After receiving the customer's fault notification, a solution will be proposed within 2 hours, and if it is urgent case which needs on site maintenance, technical crew will arrive within 12 hours after boarding the plane. With experienced professional after-sales service personnel, they are not only responsible for the installation and commissioning of the company's products, but also complete the after-sales and maintenance of sintering furnaces for both domestic and foreign manufacturers.
- Convenient service: Users can test products at the site of Ruideer if they have needs. The company's production site has conditions for hot pressurization.
- Quick installation: Under the condition that the user's water, electricity, and gas are in place, installation, debugging, and production can be completed within 20 days.
- Company testing equipment: In order to ensure the quality of the products, Ruideer is equipped with imported helium mass spectrometer leak detectors, which are used to test the sealing surfaces of the equipment before leaving the factory to prevent small leaks and achieve a perfect sealing state. At the same time, it is also equipped with cobalt magnetometer and coercivity magnetometer professional precision testing equipment (currently the sintering furnace equipment manufacturer, only equipped by Ruideer), to meet customers' rapid pre-acceptance at the production site, and to control the sintered furnace The sample block is tested, and the performance results of the furnace control plate sample block can be tested in time, and the detection level has reached the standard of a small and medium-sized alloy factory.
Documents of Equipment and Technical Files
- Operation and Maintenance Manual (O&M)
- The installation
- Equipment Layout
- The whole equipment installation manual, equipment installation drawing and requirements for water, electricity and gas.
- The external conditions (water, electricity and gas) required for installation of the sintering furnace shall be provided by the buyer according to the requirements of the supplier.
- Mechanical drawings
- Drawings of fragile parts of equipment
- Electrical Schematic Diagram
Buyer’s Preparation
- Prepared by the buyer before installation:
- Services required for hoisting and unloading sintering furnace equipment in place.
- The connection of the power supply to the connection point outside the power cabinet.
- The cooling water main inlet and return pipes connected to the equipment, various process gas pipes, compressed air and high-pressure argon supply pipes, high-pressure gas exhaust pipes, pump exhaust gas discharge pipes, etc.
- Supply and storage of pressurized gas and reduce the pressure of pressurized gas to the corresponding pressure range, the required equipment and the pressure reducing valve of each process gas.
- If necessary, measure the pollution of the pressurized gas.
- Emergency water supply device when cooling water is interrupted.
- The seller only provides certification materials for the production of pressure vessels in China. If other certifications are involved, the buyer shall bear the cost.
- The working medium, process materials and other related matters required for acceptance.
- Other unmentioned matters, which are not included in the scope of supply, shall be prepared by the buyer.
